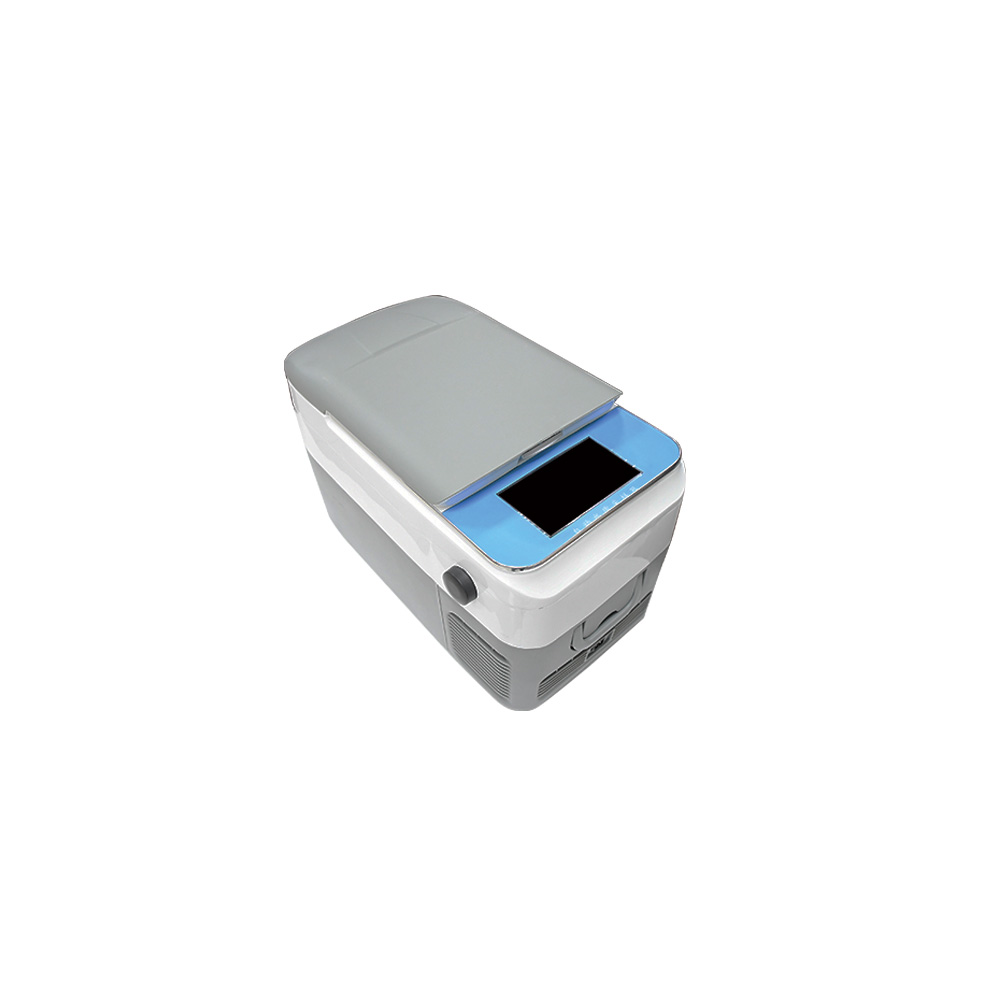

The YS20 mobile navigation transport box is a refrigerated transport box with navigation launched by Gresp Company. It connects to the Internet via 4G mobile network and can monitor the running trajectory of water samples, the on/off records of the sampling box, and the temperature value in real time through the cloud platform, providing objective and true feedback on the status of water samples and ensuring the accuracy and reliability of water sample collection as well as the safety of transportation.
The mobile navigation transport box can be used in conjunction with any water quality sampling equipment, facilitating the storage and transportation of collected water samples.
1. Product features：
Vehicle-mounted power supply, convenient to use;
Compact in size and convenient to carry when going out.
The refrigeration temperature can be set from -20°C to 10°C to ensure the ambient temperature of the sample.
The navigation version and the screen version are equipped with a 7-inch color touch screen, which is simple and clear to operate.
The navigation version and the screen version have door opening and closing records to ensure the safety of the samples.
The navigation version is equipped with a navigation module, allowing users to view the temperature records and transportation trajectories of the transport boxes on the smart cloud platform.
2. Technical indicators
1. Water storage containers: 12 500ml polyethylene water storage bottles;
2. Refrigeration method: Compression mechanism, temperature control range -20℃ to 10℃, with an increase of 1℃.
3. Dimensions: 331mm×579mm×360mm (width × depth × height);
4. Box dimensions: 345mm×245mm×280mm (width × depth × height);
5. Weight: 11.4kg;
6. Power: 48W
7. Power Supply: On-board power converter;
8. Working environment temperature: -5℃ to +50℃;
9. Working environment humidity: 5-85%RH;
10. Display screen: 7-inch full-color touch screen, resolution 800*480;
11. Temperature record: 10,000 entries;
12. Door opening and closing records: 10,000.
