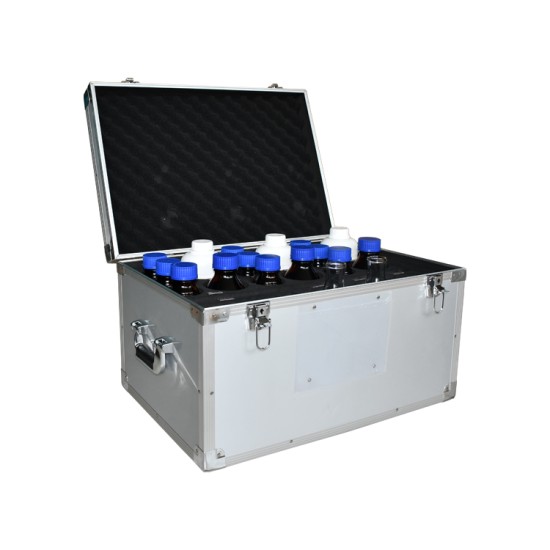

The YS10 water quality sampling box is an instrument specifically produced by Grasp Company for on-site water sample collection and storage. It can be installed on portable water quality samplers for use.
The sampling box can be used in conjunction with any water quality sampling equipment, facilitating the collection, storage and transportation of water samples.
Technical parameter
|
Material quality |
Bottle material: fluorine plastic Box body material: aviation aluminum material |
|
|
Specification |
12-0.5L |
12-1L |
|
Sampling bottle size |
Φ68mm×188mm（Diameter×Height） |
Φ91mm×220mm（Diameter×Height） |
|
Weight |
3.7kg |
5.15kg |
|
Box size |
395×300×240mm （Length×Width×Height） |
493×370×290mm （Length×Width×Height） |
Tailor-made style
|
Material quality |
Bottle material: fluorine plastic Box body material: aviation aluminum material |
|
|
Specification |
DZ1 |
DZ2 |
|
The bottle specifications |
1000ml Plastic bottle × 3 100ml Brown glass bottle × 6 250ml Brown glass bottle × 3 500ml Brown glass bottle × 3 |
500ml Brown glass bottle × 4 1000ml Plastic bottle × 2 2000ml Plastic bottle × 2 Alcohol lamp：lamp height：125mm Bottom diameter：50mm Maximum diameter of the bottle body：93mm Capacity：250ml |
|
Weight |
|
8.7kg |
|
Box size |
600×560×410mm （Length×Width×Height） |
563mm×430mm×423mm （Length×Width×Height） |
