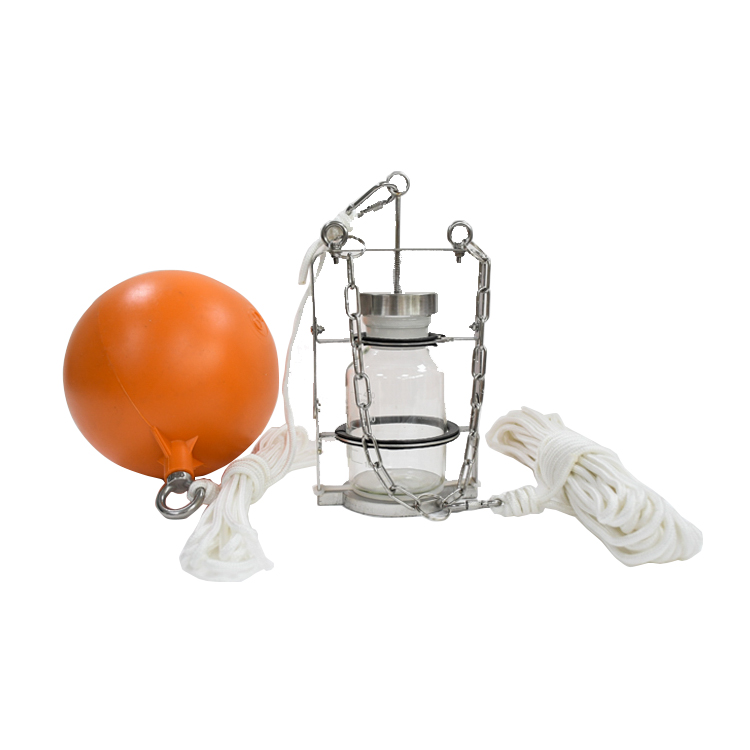

The SG30 surface oil sampler is used to collect water samples from oceans, lakes and rivers for oil content analysis. It can also collect water samples for routine analysis and is an indispensable device for investigating water pollution conditions. Since its development, it has become one of the standard water (oil) samplers stipulated for use in the national Marine pollution monitoring network and the national secondary Marine pollution baseline survey.
The sampling bottle is made of glass.
The body is made of stainless steel, which is resistant to corrosion and acid and alkali.
The operation is simple.
一、Technical indicators
|
Sampling method |
Close - Open - close Standard capacity configurations: 500mL, 1000mL; The capacity can be customized according to the customer's needs Material: The sampling bottle is made of glass, and the body is made of stainless steel Operating water depth: Underwater to 1 meter (adjustable and expandable) Operating temperature: -2℃ to 40℃ Injection time: ≤1 minute Configuration: 1 set of the main body of the surface oil water sampler, 1 float ball, 1 set (2 pieces) of sampling ropes, 1 stoppered ground-mouth reagent bottle (can be added according to customer requirements) |
|
|
Specification |
0.5L |
1L |
|
Sampling bottle capacity |
500ml |
1000ml |
|
Sampling bottle size |
Φ86mm×148mm(Diameter × height) |
Φ108mm×187mm(Diameter × height) |
|
Overall dimensions |
Φ138mm×283mm(Diameter × height) |
Φ138mm×315mm(Diameter × height) |
|
Overall weight |
2.4kg |
2.9kg |
