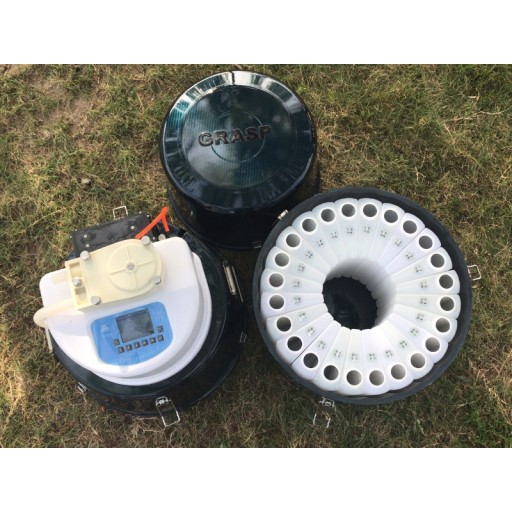

The automatic sampling function of the water sampler is achieved by integrating advanced sensors, automatic control technology and communication technology. The following are the steps and key technologies for a typical automatic water quality sampler to achieve automatic sampling:
System Integration and Design
1. Sensor selection: Select the appropriate sensor based on the water quality parameters to be monitored (such as temperature, pH value, dissolved oxygen, turbidity, conductivity, ammonia nitrogen, heavy metals, etc.). These sensors can sense specific chemical substances or physical parameters in water in real time.
2. Control System Design: Design a microprocessor or microcontroller as the core of the system, responsible for receiving sensor signals, processing data, controlling sampling actions, and managing communications.
3. Sampling mechanism: Design a reliable sampling mechanism, which usually includes a pump or valve, to draw water samples from the water body and store them in sampling bottles or containers.
4. Power Management: Ensure a stable power supply for the system, which can be from batteries, solar panels or other renewable energy sources.
Automatic Sampling Process
1. Initialization and Self-check: When the system starts up, a self-check is conducted to ensure that all sensors and components are functioning properly.
2. Data Acquisition: The sensor continuously monitors the water body and transmits the data to the control system.
3. Data Analysis and Decision-making: The control system analyzes sensor data to determine whether sampling needs to be triggered. This can be based on time intervals (such as sampling once per hour) or specific conditions (such as sampling when the pH value is below a certain threshold).
4. Sampling execution: Once sampling is decided, the control system activates the sampling mechanism, such as opening the pump or valve to draw the water sample into the sampling bottle.
5. Sample preservation: After sampling is completed, the system may conduct preliminary treatment on the samples (such as adding preservatives), and then seal and store them for subsequent analysis.
6. Data Transmission: If the system is equipped with a communication module, the sampling data and status information can be transmitted to a remote server or cloud platform, enabling remote monitoring and management of the data.
Key Technologies and Challenges
1. Sensor accuracy and stability: High-precision and stable sensors are the key to ensuring data accuracy.
2. Low-power design: For systems that rely on battery power, low-power design is crucial to ensure long-term operation.
3. Environmental adaptability: The system needs to be capable of stable operation in various harsh environments, such as high temperatures, low temperatures, high humidity, and corrosive environments.
4. Data Security and Privacy: During the data transmission process, it is necessary to ensure the security and privacy of the data to prevent it from being tampered with or leaked.
The automatic water quality sampler realizes the automatic sampling function by integrating sensors, automatic control and communication technologies, which greatly improves the efficiency and accuracy of water quality monitoring. With the continuous advancement of technology, future water quality monitors will be more intelligent and efficient, providing stronger support for environmental protection.
